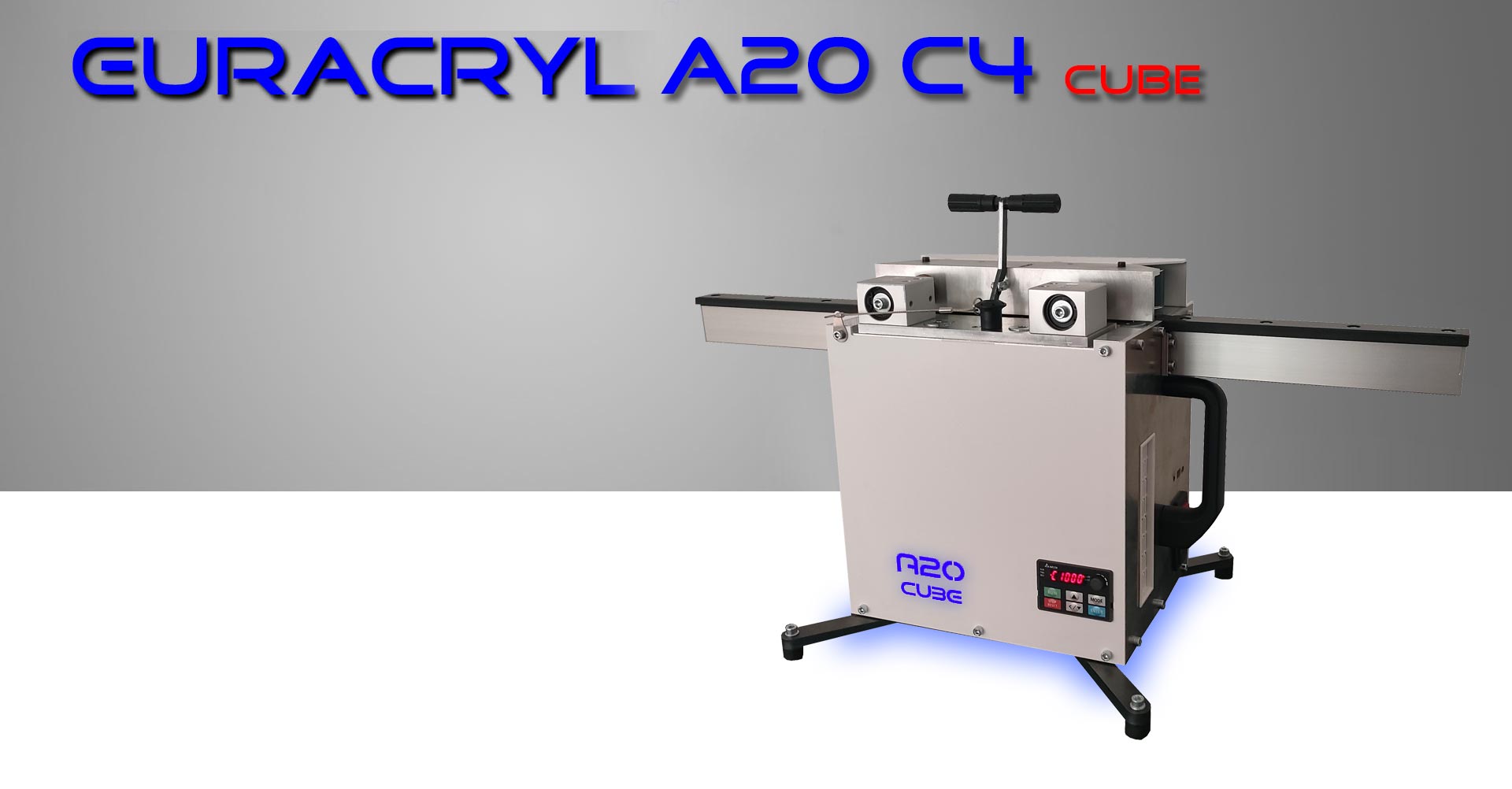

Mini vertical desktop edge polishing machine.

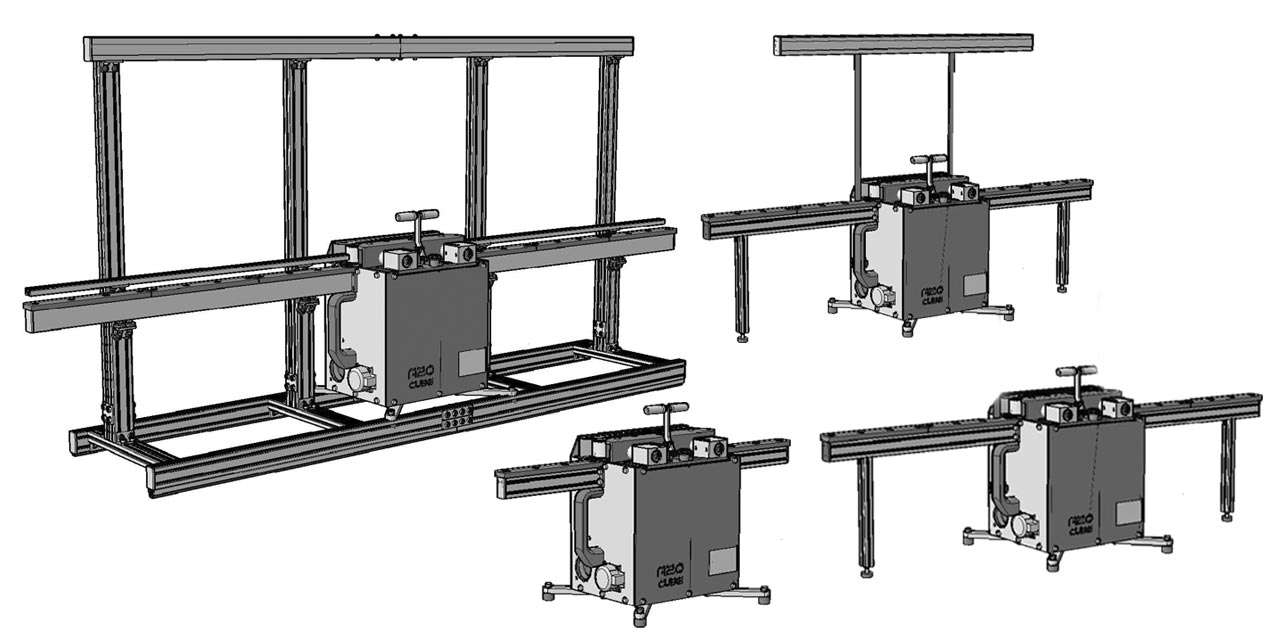

VERSATILITY AND FLEXIBILITY
The EURACRYL A20 C4 model can be equipped with various extensions to enable convenient processing of different material formats. These can also be added later.

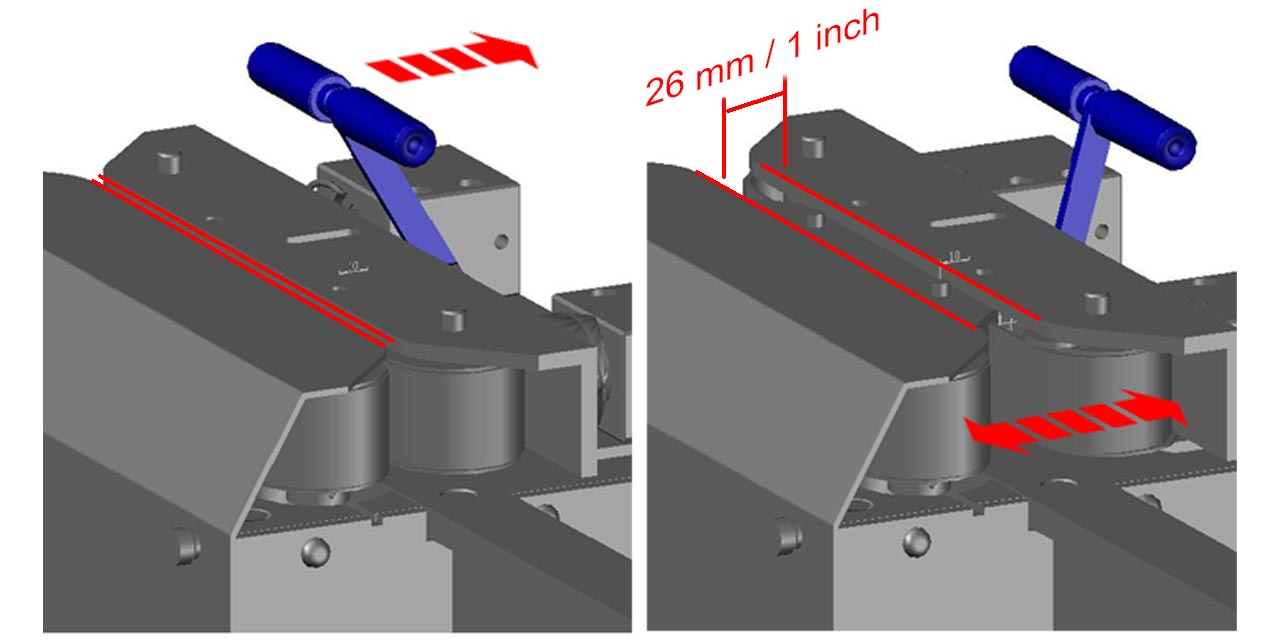

ADJUSTMENT OF MATERIAL THICKNESS
The thickness of the material is adjusted conveniently up to 26 mm (1 inch) and without using force by pressing the tension lever.

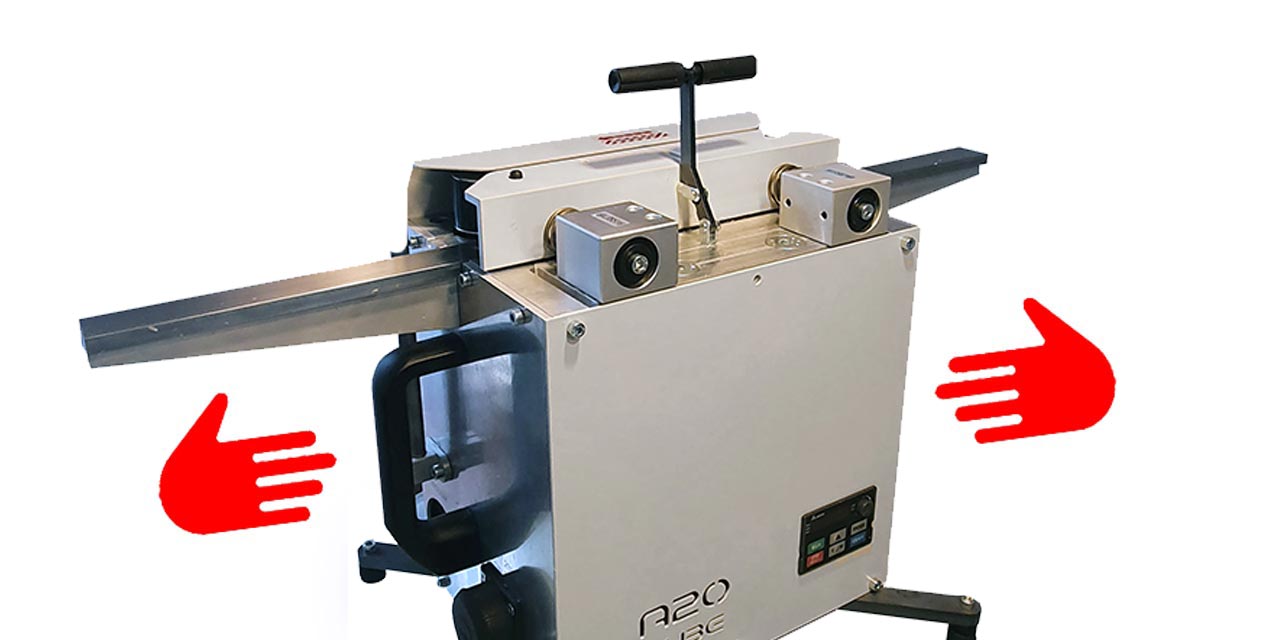

MOBILE USE
The machine is compact and light. What allows a fast
location. However, it is robust enough to ensure
optimum part finish at all times.

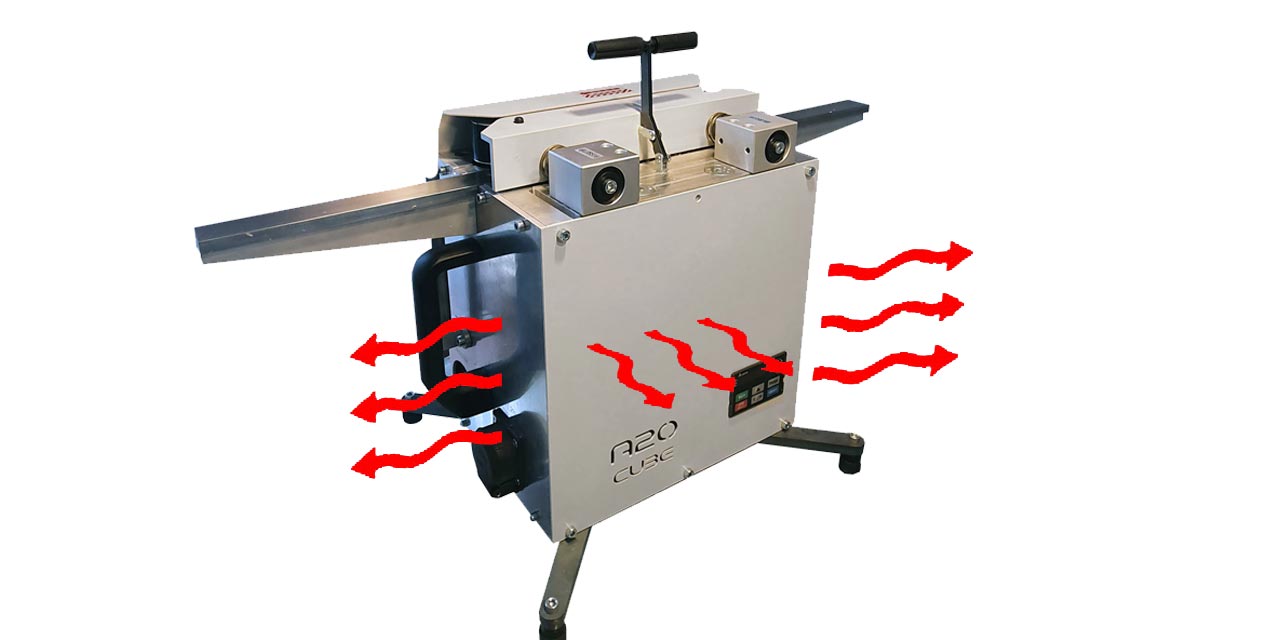

ALUMINUM HOUSING
The compact design of the machine is only possible thanks to a very
compact electrical concept. To prevent the machine from overheating, the
entire machine housing is made of heat dissipating aluminum
with additional vents.
MILLING / POLISHING TOOLS

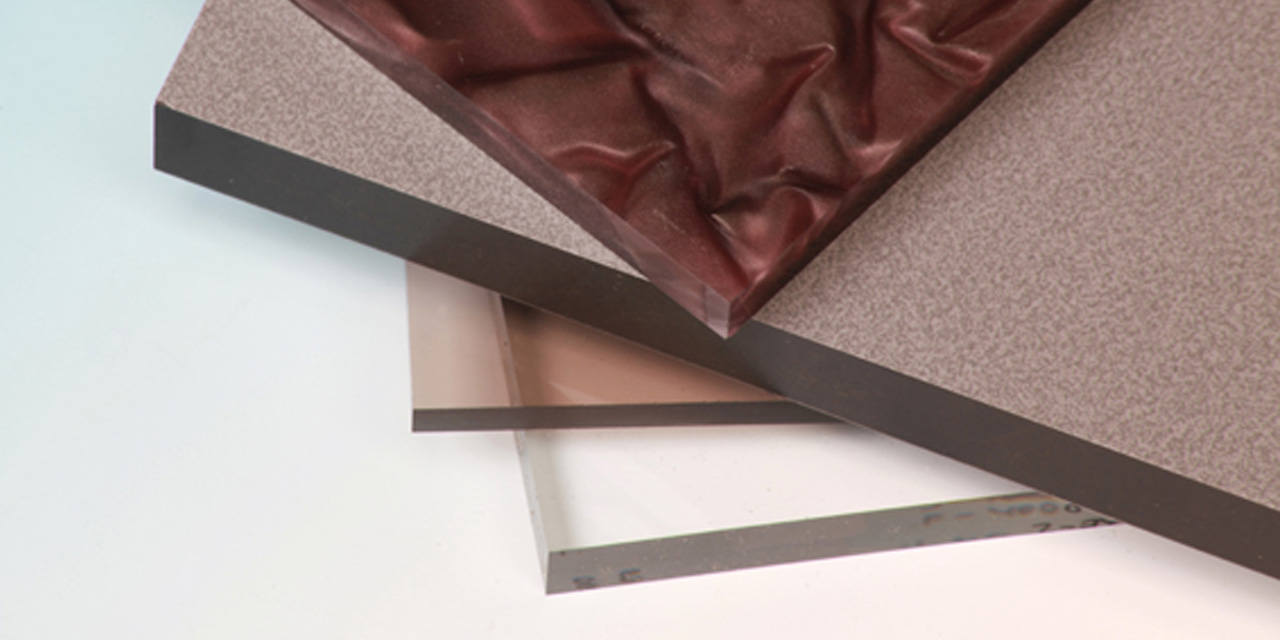

A selection of 22 standard tools allows the processing of plastics (PMMA, PC, PET-G, SAN, etc.) or composite materials (PMMA with aluminum or paper). As well as the production of high gloss, shiny or satin finished surfaces. With the tools of the type HIGH SPEED you can increase the feed rate up to 200%.
TECHNICAL DATA
| Material thickness (mm) | 2 … 26 (0.04” … 1”) |
| Material length / with accessories (mm) | 50 … 800 / … 1200 |
| Milling motor power (kW) | 0,8 |
| Feed motor power (kW) | 0,3 |
| Weight (kg) | 22 |
| Feed speed (m / min) | 0,1 … 5,0 |
| Spindle turn speed (rpm) | 0 … 18.000 |
| Milling depth (mm) | ~0,5 |
| Elec. Connection (V / Hz) | 230 V / 50-60 Hz |
| Connection diameter chip extraction (mm) | 32 |
| Total power (kW) | 1,1 |
| Tool includede / Number of edges | High Gloss / 2 |
