Description
EURACRYL BO-W
Clockwise turning

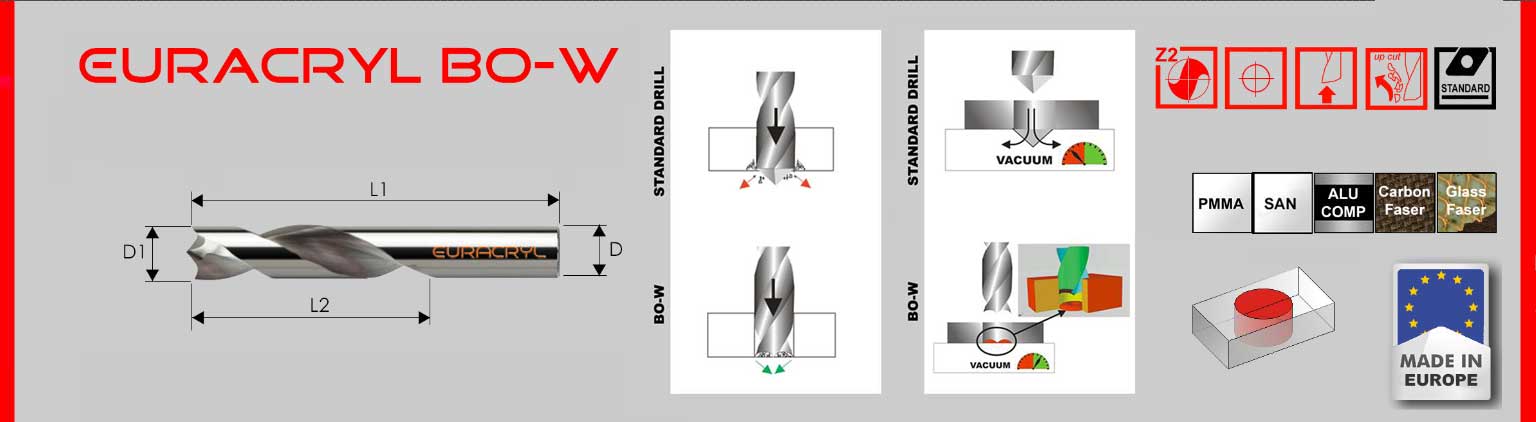

Solid carbide drills in standard quality with protection against outflow cracking and protection against vacuum loss when using vacuum plates. For processing acrylic (PMMA), polycarbonate and other glossy or transparent plastics.
Additional information
| Order No | 700 300, 700 317, 700 320, 700 330, 700 350, 700 370, 700 400, 700 420, 700 450, 700 476, 700 500, 700 530, 700 550, 700 580, 700 600, 700 635, 700 650, 700 700, 700 750, 700 793, 700 800, 700 850, 700 900, 700 950, 701 000, 701 050, 701 100, 701 150, 701 200, 701 300, 701 400, 701 500, 701 600, 750 300, 750 350, 750 400, 750 450, 750 500, 750 550, 750 600, 750 650, 750 700, 750 750, 750 800, 750 850, 750 900, 750 950, 751 000, 751 050, 751 100, 751 200 |
|---|---|

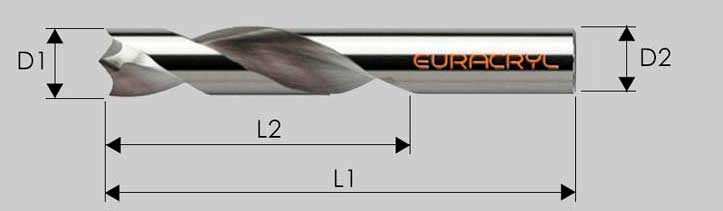

| D1/D2 | 10,00, 10,50, 11,00, 11,50, 12,00, 13,00, 14,00, 15,00, 16,00, 3,00, 3,17, 3,20, 3,30, 3,50, 3,70, 4,00, 4,20, 4,50, 4,76, 5,00, 5,30, 5,50, 5,80, 6,00, 6,35, 6,50, 7,00, 7,50, 7,93, 8,00, 8,50, 9,00, 9,50 |
| L2 | 12, 14, 15, 17, 18, 20, 25, 26, 28, 30, 31, 32, 34, 35, 37, 38, 40, 48, 50, 55, 60, 65, 70 |
| L1 | 100, 102, 105, 107, 110, 111, 115, 120, 40, 50, 52, 55, 57, 58, 60, 62, 65, 66, 70, 74, 75, 79, 80, 84, 89, 90, 95 |
| PU |
