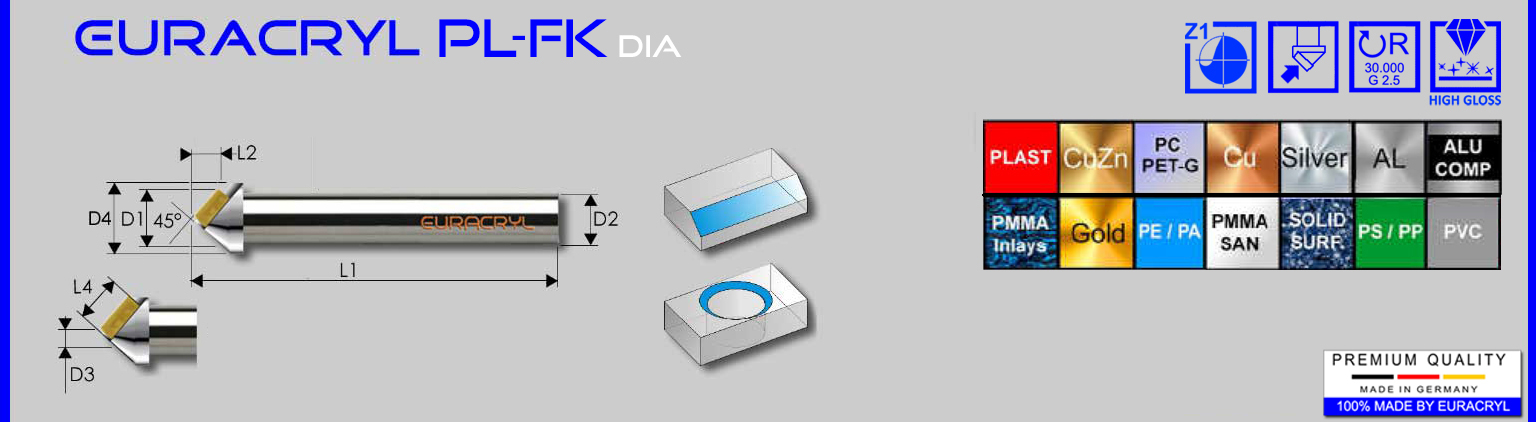

EURACRYL PL-FK DIA
Chamfer end mills with monocrystalline diamond cutter for high-gloss processing of acrylic (PMMA), polycarbonate and other glossy or transparent plastics, as well as non-ferrous metals. For machining bevels and facets.

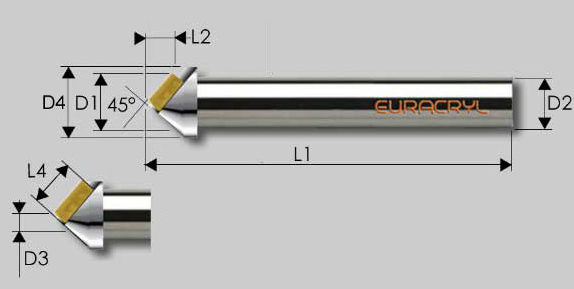

| Order No | 510 602, 510 603, 510 604, 510 605, 510 606, 510 607, 510 608, 510 610, 510 612, 510 613, 510 614, 510 615, 510 616, 510 618, 510 620, 510 622, 510 623, 510 624, 510 626, 510 628, 510 634 |
|---|---|
| L2 | |
| D1 | |
| D3 | |
| D4 | |
| L1 | |
| L4 | 10,5, 11,5, 14,5, 17,5, 3,5, 4,5, 6,5, 7,5, 8,5, 20,5, 23,5, 26,5, 28,5 |
| D2 | |
| PU |
| Order No | L2 | D1 | D3 | D4 | L1 | L4 | D2 | PU | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 510 612 | 2 | 7 | 2 | 7 | 65 | 3,5 | 6 | 1 | 585,00€ | |
| 510 602 | 2 | 7 | 2 | 8 | 65 | 3,5 | 8 | 1 | 585,00€ | |
| 510 613 | 3 | 7 | 1 | 7 | 65 | 4,5 | 6 | 1 | 668,00€ | |
| 510 623 | 3 | 8 | 2 | 10 | 65 | 4,5 | 6 | 1 | 668,00€ | |
| 510 603 | 3 | 8 | 2 | 8 | 65 | 4,5 | 8 | 1 | 668,00€ | |
| 510 614 | 4 | 11 | 2 | 11 | 65 | 6,5 | 6 | 1 | 950,00€ | |
| 510 604 | 4 | 10 | 1 | 10 | 65 | 6,5 | 8 | 1 | 950,00€ | |
| 510 624 | 4 | 11 | 2 | 11 | 65 | 6,5 | 8 | 1 | 950,00€ | |
| 510 615 | 5 | 11 | 1 | 11 | 65 | 7,5 | 6 | 1 | 1.050,00€ | |
| 510 605 | 5 | 11 | 1 | 11 | 65 | 7,5 | 8 | 1 | 1.050,00€ | |
| 510 606 | 6 | 13 | 1 | 13 | 65 | 8,5 | 8 | 1 | 1.425,00€ | |
| 510 626 | 6 | 14 | 2 | 14 | 65 | 8,5 | 8 | 1 | 1.425,00€ | |
| 510 607 | 7 | 16 | 1 | 16 | 65 | 10,5 | 8 | 1 | 1.850,00€ | |
| 510 608 | 8 | 17 | 1 | 17 | 65 | 11,5 | 8 | 1 | 2.100,00€ | |
| 510 628 | 8 | 18 | 2 | 22 | 65 | 11,5 | 8 | 1 | 2.100,00€ | |
| 510 610 | 10 | 22 | 2 | 22 | 65 | 14,5 | 8 | 1 | 2.685,00€ | |
| 510 622 | 12 | 26 | 1 | 26 | 65 | 17,5 | 8 | 1 | 2.950,00€ | |
| 510 616 | 16 | 35 | 2 | 40 | 76 | 23,5 | 20 | 1 | 3.850,00€ | |
| 510 634 | 14 | 31 | 2 | 40 | 76 | 20,5 | 20 | 1 | 3.450,00€ | |
| 510 618 | 18 | 40 | 2 | 40 | 76 | 26,5 | 20 | 1 | 4.750,00€ | |
| 510 620 | 20 | 42 | 2 | 42 | 76 | 28,5 | 20 | 1 | 4.890,00€ | |
