Description

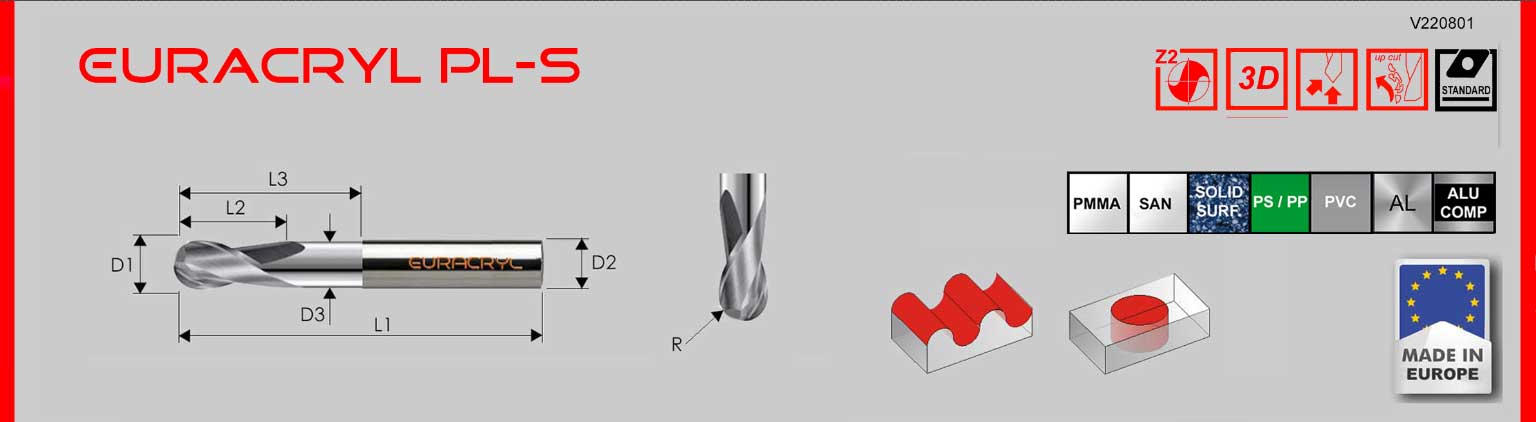

EURACRYL PL-S

Carbide ball nose milling tool for pre-milling and roughing
Clockwise turning – pulling upwards – 2 cutters

Solid carbide ball nose mills in standard quality. For 3-D machining or chamfering, deburring, centering, drilling, engraving, grooving, etc. For the processing of acrylic glass (PMMA), polycarbonate and other glossy or transparent plastics as well as light metals. Roughing tool. Right spiraled with chip removal upwards.

Additional information

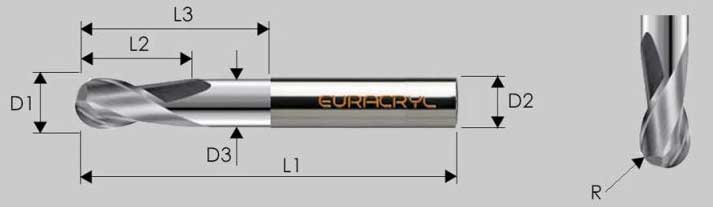

Order No	512 020, 512 030, 512 040, 512 050, 512 060, 512 080, 512 100, 512 120, 512 160, 512 200
R	1,0, 1,5, 10,0, 2,0, 2,5, 3,0, 4,0, 5,0, 6,0, 8,0
D1	10, 12, 16, 2, 20, 3, 4, 5, 6, 8
L2	10, 12, 14, 18, 22, 4, 5, 6, 7, 8
L3	12, 15, 20, 26, 31, 37, 43, 53, 6, 9
D3	1,8, 11,0, 15,0, 19,0, 2,8, 3,7, 4,6, 5,5, 7,4, 9,2
L1	104, 57, 63, 72, 83, 92
D2	10, 12, 16, 20, 6, 8
PU	1

Order No

Price

Quantity

512 020

1,0

1,8

41,00€

512 030

1,5

2,8

41,00€

512 040

2,0

3,7

41,00€

512 050

2,5

4,6

41,00€

512 060

3,0

5,5

41,00€

512 080

4,0

7,4

54,50€

512 100

5,0

9,2

74,00€

512 120

6,0

11,0

103,00€

512 160

8,0

15,0

173,00€

512 200

10,0

19,0

104

272,00€
