Name: PL-FC-2 DIA
SKU: 7434
Availability: InStock

Description

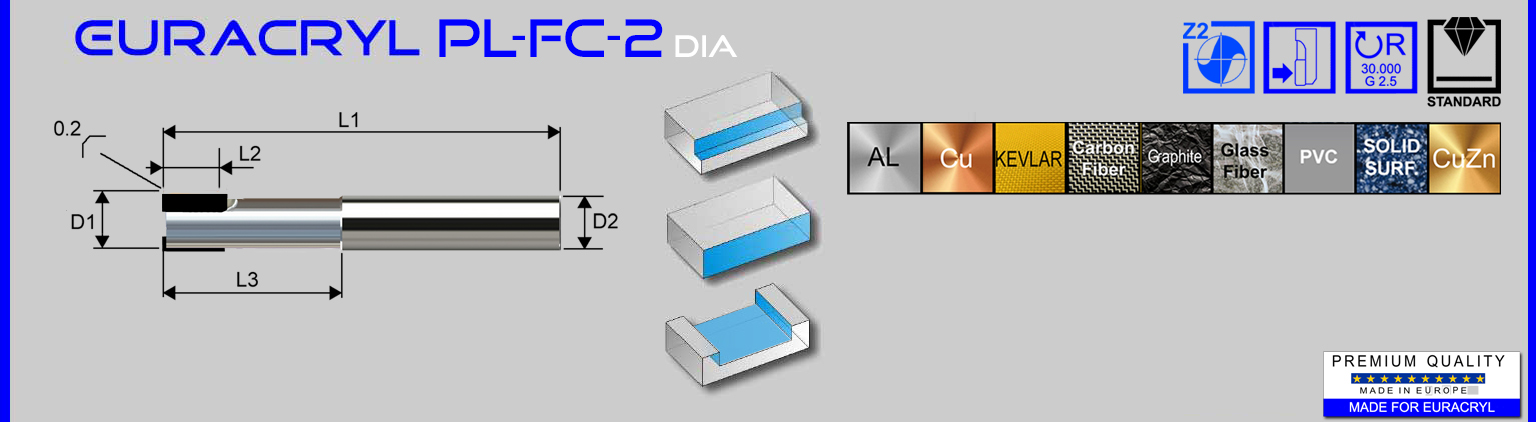

EURACRYL PL-FC-2 DIA

End mill with 2 polycrystalline diamond cutters for abrasive materials
Tangential and vertical cut / Vertical and horizontal surfaces

Two flutes polycrystalline diamond milling cutter for machining fiberglass reinforced plastic (FRP), carbon fiber reinforced plastic (CFRP), graphite, solid surface (CORIAN, etc.), aluminum, etc. For internal and external surfaces.

Additional information

Order No	504 004, 504 006, 504 008, 504 010, 504 015, 504 017, 504 020, 504 106, 504 108, 504 110, 504 115, 504 120, 504 210, 504 215, 504 220, 504 310, 504 315, 504 410
L2	10, 15, 16, 17, 20, 22, 25, 4, 5, 6, 8
D1	10, 12, 16, 20, 3, 4, 5, 6, 8
L3	12, 17, 20, 22, 25, 30, 35, 37, 40, 45, 27
L1	50, 55, 60, 61, 63, 65, 66, 71, 75, 76, 81, 85, 86, 89, 91
D2	10, 12, 16, 20, 6, 8
Z	2
PU	1

Order No	L2	D1	L3	L1	D2	Z	PU	Price	Quantity
504 004	4	3	12	50	6	2	1	226,63€	PL-FC-2 DIA quantity
504 106	6	3	12	50	6	2	1	232,00€	PL-FC-2 DIA quantity
504 006	6	4	17	55	6	2	1	238,88€	PL-FC-2 DIA quantity
504 108	8	4	17	55	6	2	1	246,00€	PL-FC-2 DIA quantity
504 008	8	5	22	60	6	2	1	269,00€	PL-FC-2 DIA quantity
504 310	10	4	17	55	6	2	1	258,00€	PL-FC-2 DIA quantity
504 410	10	5	22	60	6	2	1	281,00€	PL-FC-2 DIA quantity
504 010	10	6	27	65	6	2	1	294,00€	PL-FC-2 DIA quantity
504 110	10	6	27	65	8	2	1	316,00€	PL-FC-2 DIA quantity
504 210	10	8	27	65	8	2	1	319,00€	PL-FC-2 DIA quantity
504 215	15	6	27	65	6	2	1	345,00€	PL-FC-2 DIA quantity
504 315	15	6	27	65	8	2	1	345,00€	PL-FC-2 DIA quantity
504 015	15	8	27	65	8	2	1	384,00€	PL-FC-2 DIA quantity
504 115	15	10	37	75	10	2	1	460,00€	PL-FC-2 DIA quantity
504 017	17	12	45	85	12	2	1	519,00€	PL-FC-2 DIA quantity
504 120	20	8	27	65	8	2	1	425,00€	PL-FC-2 DIA quantity
504 020	20	10	35	75	10	2	1	533,00€	PL-FC-2 DIA quantity
504 220	25	12	45	85	12	2	1	636,00€	PL-FC-2 DIA quantity
