Name: PL-FC-L DIA
SKU: 7412
Availability: InStock

Description

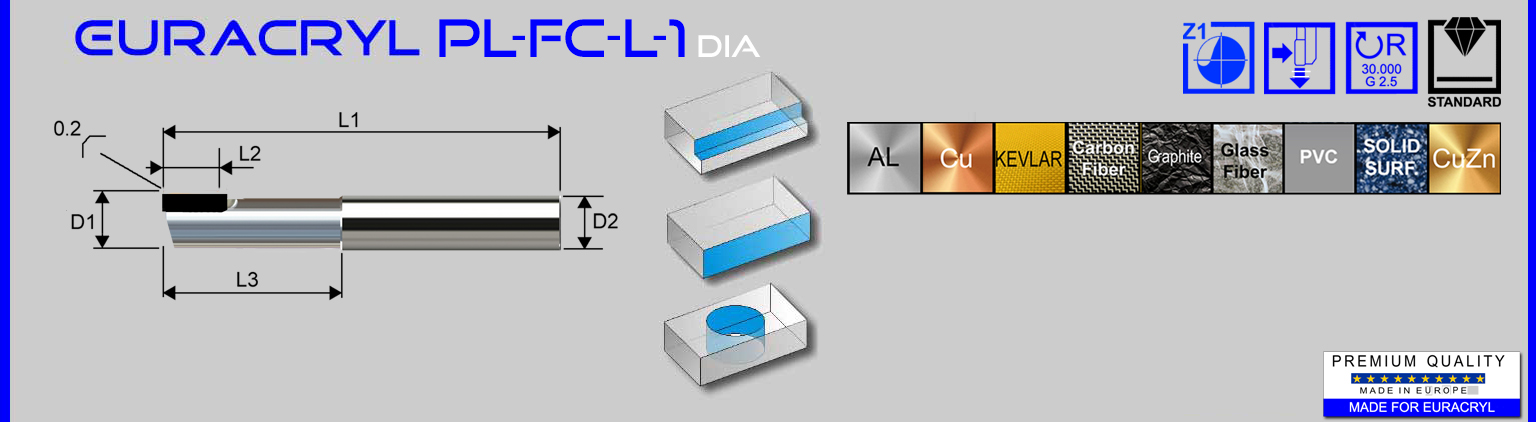

EURACRYL PL-FC-L-1 DIA

End mill with 1 polycrystalline diamond cutter for abrasive materials
Tangential and vertical cut / Vertical and horizontal surfaces / Center cutting (Drill function)

Single-flute polycrystalline diamond milling cutter for machining fiberglass reinforced plastic (FRP), carbon fiber reinforced plastic (CFRP), graphite, solid surface (CORIAN, etc.), aluminum, etc. For internal and external surfaces.

Additional information

Order No	564 004, 564 006, 564 008, 564 010, 564 015, 564 017, 564 020, 564 106, 564 108, 564 110, 564 115, 564 120, 564 210, 564 215, 564 220, 564 310, 564 315, 564 410
L2	10, 15, 16, 17, 20, 22, 25, 4, 5, 6, 8
D1	10, 12, 16, 20, 3, 4, 5, 6, 8
L3	12, 17, 20, 22, 25, 30, 35, 37, 40, 45, 27
L1	50, 55, 60, 61, 63, 65, 66, 71, 75, 76, 81, 85, 86, 89, 91
D2	10, 12, 16, 20, 6, 8
Z	1
PU	1

Order No	L2	D1	L3	L1	D2	Z	PU	Price	Quantity
564 004	4	3	12	50	6	1	1	197,00€	PL-FC-L DIA quantity
564 106	6	3	12	50	6	1	1	199,00€	PL-FC-L DIA quantity
564 006	6	4	17	55	6	1	1	203,00€	PL-FC-L DIA quantity
564 108	8	4	17	55	6	1	1	207,00€	PL-FC-L DIA quantity
564 008	8	5	22	60	6	1	1	223,00€	PL-FC-L DIA quantity
564 310	10	4	17	55	6	1	1	212,00€	PL-FC-L DIA quantity
564 410	10	5	22	60	6	1	1	228,00€	PL-FC-L DIA quantity
564 010	10	6	27	65	6	1	1	237,00€	PL-FC-L DIA quantity
564 110	10	6	27	65	8	1	1	254,00€	PL-FC-L DIA quantity
564 210	10	8	27	65	8	1	1	256,00€	PL-FC-L DIA quantity
564 215	15	6	27	65	6	1	1	263,00€	PL-FC-L DIA quantity
564 315	15	6	27	65	8	1	1	277,00€	PL-FC-L DIA quantity
564 015	15	8	27	65	8	1	1	291,00€	PL-FC-L DIA quantity
564 115	15	10	37	75	10	1	1	345,00€	PL-FC-L DIA quantity
564 017	17	12	45	85	12	1	1	394,00€	PL-FC-L DIA quantity
564 120	20	8	27	65	8	1	1	312,00€	PL-FC-L DIA quantity
564 020	20	10	35	75	10	1	1	382,00€	PL-FC-L DIA quantity
564 220	25	12	45	85	12	1	1	444,00€	PL-FC-L DIA quantity
