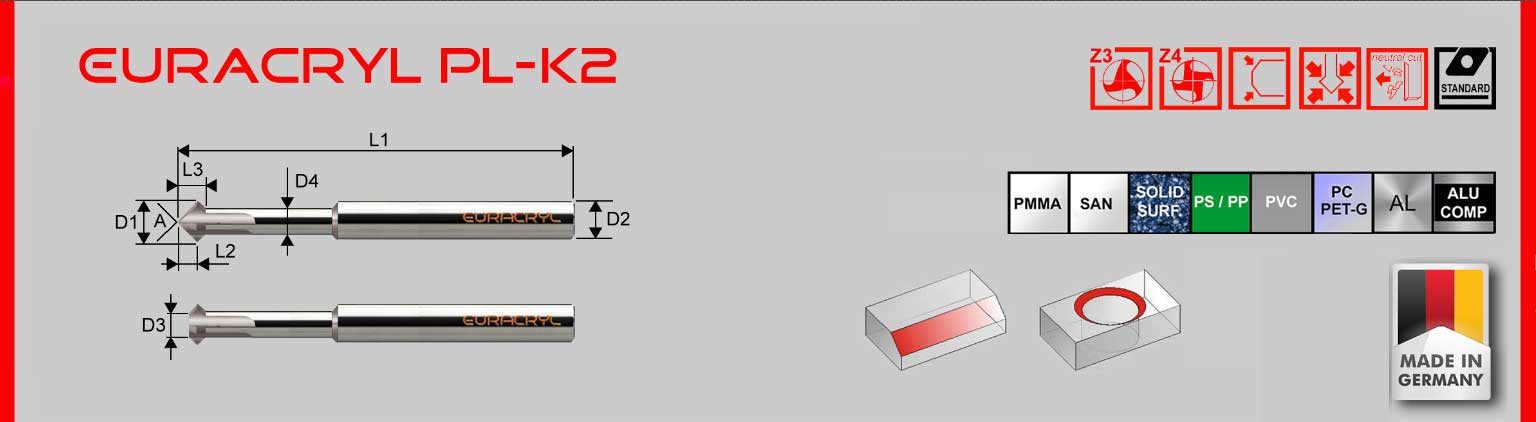

EURACRYL PL-K2
Forward and reverse deburrering tool. For processing acrylic (PMMA), polycarbonate and other plastics as well as light metals. Straight cutting edge.
| Order No | A | D1 | L2 | D3 | D4 | L3 | L4 | L1 | D2 | Z | PU | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 516 605 | 60° | 5,0 | 0,55 | 3 | 3 | 1,1 | 25 | 60 | 3 | 3 | 1 | 52,50€ | |
| 516 609 | 60° | 9,0 | 0,85 | 6 | 6 | 1,7 | 35 | 70 | 6 | 3 | 1 | 67,50€ | |
| 516 612 | 60° | 12,0 | 1,15 | 8 | 8 | 2,3 | 45 | 80 | 8 | 3 | 1 | 93,00€ | |
| 516 928 | 90º | 2,8 | 0,40 | 2 | -- | 1,8 | 11 | 75 | 6 | 4 | 1 | 51,00€ | |
| 516 938 | 90º | 3,8 | 0,40 | 3 | -- | 2,3 | 14 | 75 | 6 | 4 | 1 | 53,50€ | |
| 516 948 | 90º | 4,8 | 0,40 | 4,0 | -- | 2,8 | 16 | 75 | 6 | 4 | 1 | 56,50€ | |
| 516 905 | 90º | 5,0 | 1,00 | 3 | 3 | 2,0 | 25 | 60 | 3 | 3 | 1 | 52,50€ | |
| 516 958 | 90º | 5,8 | 0,90 | 4,0 | 3,0 | 1,8 | 20 | 100 | 6 | 4 | 1 | 58,25€ | |
| 516 978 | 90º | 7,8 | 1,20 | 5,4 | 3,5 | 2,4 | 25 | 100 | 6 | 4 | 1 | 75,00€ | |
| 516 909 | 90º | 9,0 | 1,50 | 6 | 6 | 3,0 | 35 | 70 | 6 | 3 | 1 | 67,50€ | |
| 516 998 | 90º | 9,8 | 1,90 | 6,0 | 5,0 | 3,8 | 30 | 100 | 6 | 4 | 1 | 101,00€ | |
| 516 912 | 90º | 12,0 | 2,00 | 8 | 8 | 4,0 | 45 | 80 | 8 | 3 | 1 | 93,00€ | |
