Name: PL-PF-V up cut
SKU: 3205
Availability: InStock

Weihnachtsurlaub / Christmas holidays: 22.12.2025 - 04.01.2026

Description

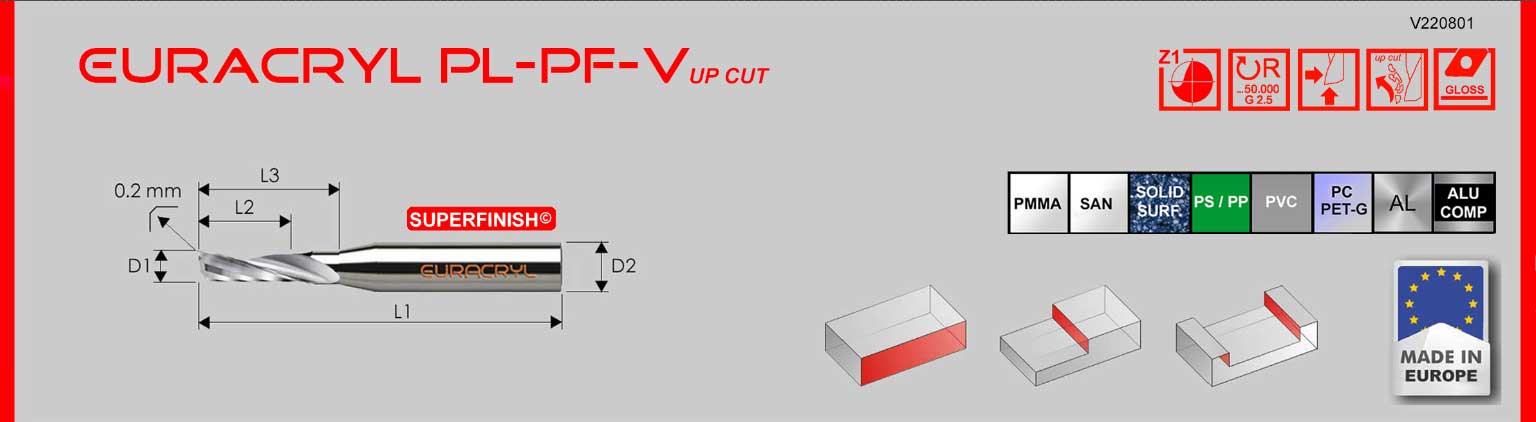

EURACRYL PL-PF-V SUPERFINISH up cut

Valanced carbide end mill for glossy finish
Clockwise turning – pulling upwards – vertical cut

Valanced solid carbide end mill in SUPERFINISH quality for the processing of acrylic (PMMA), polycarbonate and other glossy or transparent plastics as well as light metals in high speed milling spindles. For processing vertical surfaces (vertical cut). Roughing and finishing tool. Right spiraled with chip removal upwards.

Additional information

Order No	550 005, 550 106, 550 108, 550 110, 550 116, 550 205, 550 206, 550 208, 550 210, 550 306, 550 308, 550 310, 550 408, 550 410
D1	10, 5, 6, 8
L2	12, 22, 32, 42, 55
L3	—, 13
L1	100, 50, 58, 64, 72, 76
D2	10, 6, 8
RPM	36.000, 42.000, 50.000
PU	1

Rabatte Discount Descuentos 5 … 9 -8% 10 … 24 -15% 25 … 49 -20% 50 … 99 -25% 100 … -a.A.

Order No	D1	L2	L3	L1	D2	RPM	PU	Price	Quantity
550 005	5	12	13	50	6	50.000	1	34,40€	PL-PF-V up cut quantity
550 205	5	22	--	58	6	50.000	1	36,60€	PL-PF-V up cut quantity
550 106	6	12	--	50	6	50.000	1	33,60€	PL-PF-V up cut quantity
550 116	6	22	--	58	6	50.000	1	34,10€	PL-PF-V up cut quantity
550 206	6	32	--	64	6	50.000	1	40,70€	PL-PF-V up cut quantity
550 306	6	42	--	76	6	50.000	1	53,30€	PL-PF-V up cut quantity
550 108	8	22	--	64	8	42.000	1	54,20€	PL-PF-V up cut quantity
550 208	8	32	--	72	8	42.000	1	59,00€	PL-PF-V up cut quantity
550 308	8	42	--	76	8	42.000	1	67,50€	PL-PF-V up cut quantity
550 408	8	55	--	100	8	42.000	1	101,90€	PL-PF-V up cut quantity
550 310	10	22	--	64	10	36.000	1	60,60€	PL-PF-V up cut quantity
550 110	10	32	--	76	10	36.000	1	65,40€	PL-PF-V up cut quantity
550 210	10	42	--	76	10	36.000	1	79,60€	PL-PF-V up cut quantity
550 410	10	55	--	100	10	36.000	1	110,10€	PL-PF-V up cut quantity
