Name: ST-20-F DIA
SKU: 1915
Availability: InStock

Description

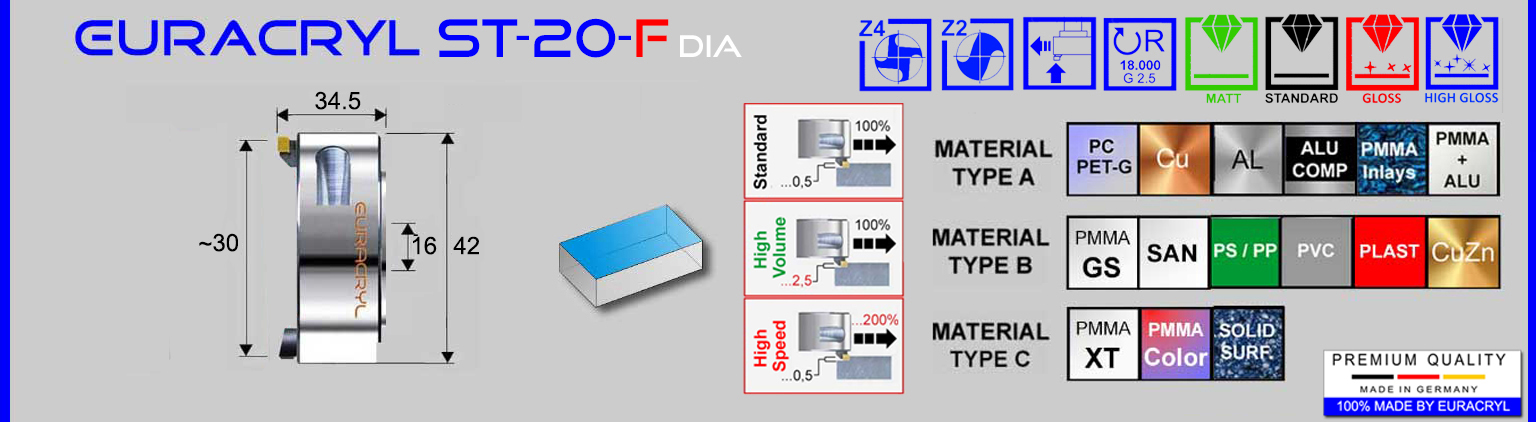

EURACRYL ST-20-F DIA

Face milling tool with mono- or polycrystalline diamond cutter for high glossy finish, standard gloss or satine finish
Tool with fixed cutters – Application in cutter head holders – Milling width up to ~30 mm

Face milling tool with fixed monocrystalline or polycrystalline diamond cutters for high gloss, standard gloss, satin surfaces, gluing surfaces, etc. For processing acrylic (PMMA), polycarbonate and other glossy or transparent plastics as well as mixed materials (PMMA + paper, PMMA + aluminum, Etc.) and non-ferrous metals. Application in cutter head holders.

Additional information

Order No	747 001, 747 002, 747 003, 747 005, 747 006, 747 008, 747 009, 747 010, 747 021, 747 022, 747 023, 747 025, 747 028, 747 030, 747 031, 747 032, 747 033, 747 035, 747 036, 747 038, 747 039
Material	Type A, Type B, Type C
Function	Face milling, Gloss, Gluing surface, High Gloss, Matt
Product type	High Speed, High Volume, Standard
PU	1

Order No	Material	Function	Product type	PU	Price	Quantity
747 001	Type B	High Gloss	Standard	1	1.105,00€	ST-20-F DIA quantity
747 021	Type B	High Gloss	High Volume	1	1.530,00€	ST-20-F DIA quantity
747 031	Type B	High Gloss	High Speed	1	1.840,00€	ST-20-F DIA quantity
747 005	Type C	High Gloss	Standard	1	1.105,00€	ST-20-F DIA quantity
747 025	Type C	High Gloss	High Volume	1	1.530,00€	ST-20-F DIA quantity
747 035	Type C	High Gloss	High Speed	1	1.840,00€	ST-20-F DIA quantity
747 008	Type A	High Gloss	Standard	1	1.105,00€	ST-20-F DIA quantity
747 028	Type A	High Gloss	High Volume	1	1.530,00€	ST-20-F DIA quantity
747 038	Type A	High Gloss	High Speed	1	1.840,00€	ST-20-F DIA quantity
747 002	Type B	Gloss	Standard	1	850,00€	ST-20-F DIA quantity
747 022	Type B	Gloss	High Volume	1	1.330,00€	ST-20-F DIA quantity
747 032	Type B	Gloss	High Speed	1	1.380,00€	ST-20-F DIA quantity
747 002	Type C	Gloss	Standard	1	850,00€	ST-20-F DIA quantity
747 022	Type C	Gloss	High Volume	1	1.330,00€	ST-20-F DIA quantity
747 032	Type C	Gloss	High Speed	1	1.380,00€	ST-20-F DIA quantity
747 003	Type B	Matt	Standard	1	850,00€	ST-20-F DIA quantity
747 023	Type B	Matt	High Volume	1	1.330,00€	ST-20-F DIA quantity
747 033	Type B	Matt	High Speed	1	1.380,00€	ST-20-F DIA quantity
747 003	Type C	Matt	Standard	1	850,00€	ST-20-F DIA quantity
747 023	Type C	Matt	High Volume	1	1.330,00€	ST-20-F DIA quantity
747 033	Type C	Matt	High Speed	1	1.380,00€	ST-20-F DIA quantity
747 009	Type B	Gluing surface	Standard	1	850,00€	ST-20-F DIA quantity
747 039	Type B	Gluing surface	High Speed	1	1.380,00€	ST-20-F DIA quantity
747 009	Type C	Gluing surface	Standard	1	850,00€	ST-20-F DIA quantity
747 039	Type C	Gluing surface	High Speed	1	1.380,00€	ST-20-F DIA quantity
747 006	Type A	Face milling	Standard	1	850,00€	ST-20-F DIA quantity
747 036	Type A	Face milling	High Speed	1	1.380,00€	ST-20-F DIA quantity
747 006	Type B	Face milling	Standard	1	850,00€	ST-20-F DIA quantity
747 036	Type B	Face milling	High Speed	1	1.380,00€	ST-20-F DIA quantity
747 006	Type C	Face milling	Standard	1	850,00€	ST-20-F DIA quantity
747 036	Type C	Face milling	High Speed	1	1.380,00€	ST-20-F DIA quantity
747 010	Type B	Face milling	Standard	1	850,00€	ST-20-F DIA quantity
747 030	Type B	Face milling	High Speed	1	1.380,00€	ST-20-F DIA quantity
747 010	Type C	Face milling	Standard	1	850,00€	ST-20-F DIA quantity
747 030	Type C	Face milling	High Speed	1	1.380,00€	ST-20-F DIA quantity
