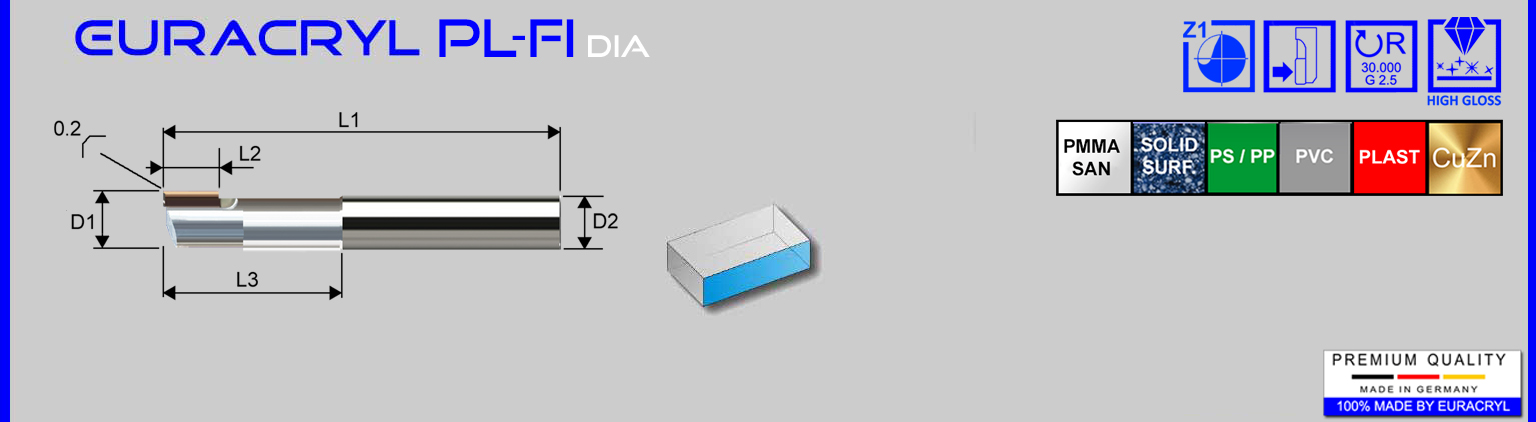

EURACRYL PL-FI DIA
End mill with monocrystalline diamond cutter for high-gloss finishes on acrylic (PMMA) and other glossy or transparent plastics, as well as non-ferrous metals. For processing exterior vertical surfaces.
| Order No | 503 504, 503 505, 503 506, 503 508, 503 510, 503 512, 503 513, 503 514, 503 515, 503 516, 503 520, 503 524, 503 525, 503 526, 503 528, 503 530, 503 532, 503 534, 503 535, 503 536, 503 540, 503 544, 503 545, 503 546, 503 554, 503 704, 503 705, 503 706, 503 707, 503 708, 503 709, 503 710, 503 711, 503 712, 503 713, 503 714, 503 715, 503 716, 503 720, 503 722, 503 723, 503 724, 503 725, 503 726, 503 727, 503 728, 503 729, 503 730, 503 731, 503 732, 503 733, 503 734, 503 735, 503 736, 503 740, 503 742, 503 743, 503 744, 503 745, 503 746, 503 750, 503 754, 503 756, 503 760, 503 764, 503 766, 503 782 |
|---|---|
| L2 | |
| D1 | |
| L3 | |
| L1 | |
| D2 | |
| PU |
| Order No | L2 | D1 | L3 | L1 | D2 | PU | Price | Quantity |
|---|---|---|---|---|---|---|---|---|
| 503 713 | 3 | 3 | 12 | 60 | 6 | 1 | 528,00€ | |
| 503 733 | 3 | 4 | 20 | 60 | 6 | 1 | 528,00€ | |
| 503 743 | 3 | 5 | 20 | 60 | 6 | 1 | 528,00€ | |
| 503 723 | 3 | 6 | 25 | 65 | 6 | 1 | 528,00€ | |
| 503 714 | 4 | 3 | 12 | 60 | 6 | 1 | 557,00€ | |
| 503 734 | 4 | 4 | 20 | 60 | 6 | 1 | 557,00€ | |
| 503 744 | 4 | 5 | 20 | 60 | 6 | 1 | 557,00€ | |
| 503 724 | 4 | 6 | 25 | 65 | 6 | 1 | 578,00€ | |
| 503 704 | 4 | 8 | 35 | 65 | 8 | 1 | 599,00€ | |
| 503 715 | 5 | 3 | 12 | 60 | 6 | 1 | 652,00€ | |
| 503 735 | 5 | 4 | 20 | 60 | 6 | 1 | 652,00€ | |
| 503 745 | 5 | 5 | 20 | 60 | 6 | 1 | 652,00€ | |
| 503 725 | 5 | 6 | 25 | 65 | 6 | 1 | 652,00€ | |
| 503 705 | 5 | 8 | 35 | 65 | 8 | 1 | 652,00€ | |
| 503 736 | 6 | 4 | 20 | 60 | 6 | 1 | 684,00€ | |
| 503 746 | 6 | 5 | 20 | 60 | 6 | 1 | 684,00€ | |
| 503 726 | 6 | 6 | 25 | 65 | 6 | 1 | 684,00€ | |
| 503 706 | 6 | 8 | 35 | 65 | 8 | 1 | 684,00€ | |
| 503 727 | 7 | 6 | 25 | 65 | 6 | 1 | 865,00€ | |
| 503 707 | 7 | 8 | 35 | 65 | 8 | 1 | 865,00€ | |
| 503 728 | 8 | 6 | 25 | 65 | 6 | 1 | 1.139,00€ | |
| 503 708 | 8 | 8 | 35 | 65 | 8 | 1 | 1.139,00€ | |
| 503 729 | 9 | 6 | 25 | 65 | 6 | 1 | 1.340,00€ | |
| 503 709 | 9 | 8 | 35 | 65 | 8 | 1 | 1.340,00€ | |
| 503 750 | 10 | 6 | 25 | 65 | 6 | 1 | 1.510,00€ | |
| 503 710 | 10 | 8 | 35 | 65 | 8 | 1 | 1.510,00€ | |
| 503 730 | 10 | 10 | 44 | 76 | 10 | 1 | 1.510,00€ | |
| 503 711 | 11 | 8 | 35 | 65 | 8 | 1 | 1.829,00€ | |
| 503 731 | 11 | 10 | 44 | 76 | 10 | 1 | 1.829,00€ | |
| 503 712 | 12 | 8 | 35 | 65 | 8 | 1 | 2.115,00€ | |
| 503 732 | 12 | 10 | 44 | 76 | 10 | 1 | 2.115,00€ | |
| 503 764 | 14 | 8 | 35 | 65 | 8 | 1 | 2.385,00€ | |
| 503 754 | 14 | 10 | 44 | 76 | 10 | 1 | 2.385,00€ | |
| 503 756 | 16 | 8 | 35 | 65 | 8 | 1 | 2.597,00€ | |
| 503 716 | 16 | 10 | 44 | 76 | 10 | 1 | 2.597,00€ | |
| 503 760 | 20 | 8 | 35 | 65 | 8 | 1 | 3.175,00€ | |
| 503 720 | 20 | 10 | 44 | 76 | 10 | 1 | 3.175,00€ | |
| 503 740 | 20 | 12 | 52 | 84 | 12 | 1 | 3.175,00€ | |
| 503 722 | 22 | 10 | 44 | 76 | 10 | 1 | 3.340,00€ | |
| 503 742 | 22 | 12 | 52 | 84 | 12 | 1 | 3.340,00€ | |
| 503 766 | 26 | 12 | 52 | 84 | 12 | 1 | 4.389,00€ | |
| 503 782 | 32 | 12 | 64 | 96 | 12 | 1 | 5.830,00€ | |
