Name: PL-FC DIA
SKU: 3856
Availability: InStock

Description

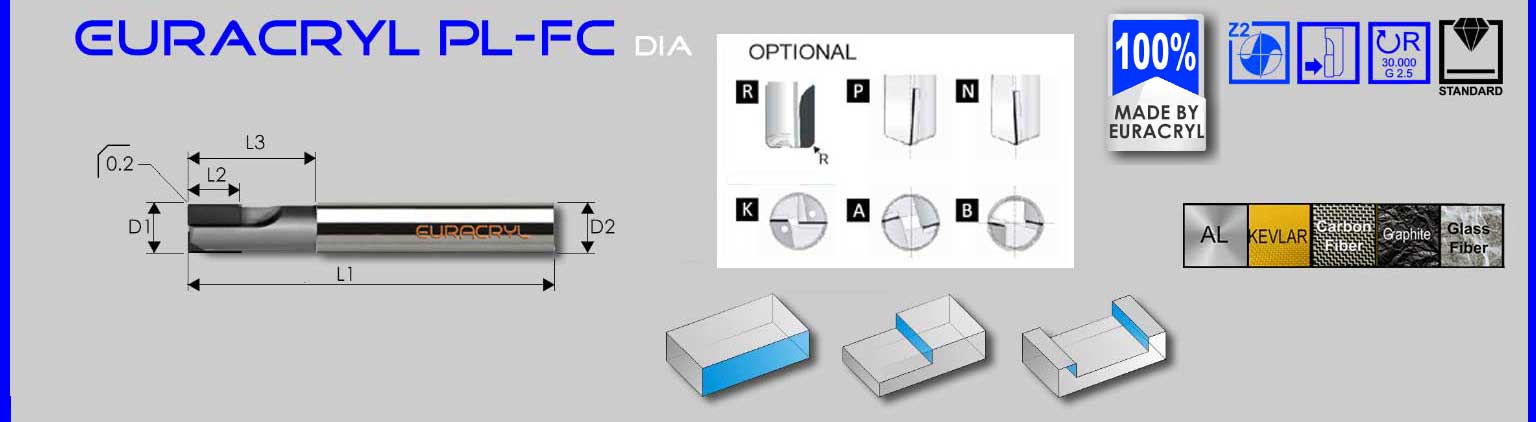

EURACRYL PL-FC DIA

End mill with 1 polycrystalline diamond cutter for abrasive materials
Tangential and vertical cut / Vertical and horizontal surfaces

Single-flute polycrystalline diamond milling cutter for machining fiberglass reinforced plastic (FRP), carbon fiber reinforced plastic (CFRP), graphite, solid surface (CORIAN, etc.), aluminum, etc. For internal and external surfaces.

Additional information

Order No	534 004, 534 006, 534 008, 534 010, 534 015, 534 017, 534 020, 534 106, 534 108, 534 110, 534 115, 534 120, 534 210, 534 215, 534 220, 534 310, 534 315, 534 410

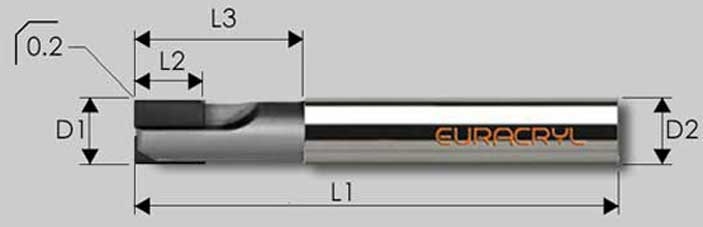

L2	10, 15, 16, 17, 20, 22, 25, 4, 5, 6, 8
D1	10, 12, 16, 20, 3, 4, 5, 6, 8
L3	12, 17, 20, 22, 25, 30, 35, 37, 40, 45, 27
L1	50, 55, 60, 61, 63, 65, 66, 71, 75, 76, 81, 85, 86, 89, 91
D2	10, 12, 16, 20, 6, 8
Z	1
PU	1

Order No	L2	D1	L3	L1	D2	Z	PU	Price	Quantity
534 004	4	3	12	50	6	1	1	191,00€	PL-FC DIA quantity
534 006	6	4	17	55	6	1	1	197,00€	PL-FC DIA quantity
534 106	6	3	12	50	6	1	1	194,50€	PL-FC DIA quantity
534 108	8	4	17	55	6	1	1	202,00€	PL-FC DIA quantity
534 008	8	5	22	60	6	1	1	214,00€	PL-FC DIA quantity
534 310	10	4	17	55	6	1	1	207,00€	PL-FC DIA quantity
534 410	10	5	22	60	6	1	1	220,00€	PL-FC DIA quantity
534 010	10	6	27	65	6	1	1	225,50€	PL-FC DIA quantity
534 110	10	6	27	65	8	1	1	242,50€	PL-FC DIA quantity
534 210	10	8	27	65	8	1	1	242,00€	PL-FC DIA quantity
534 215	15	6	27	65	6	1	1	250,50€	PL-FC DIA quantity
534 315	15	6	27	65	8	1	1	264,50€	PL-FC DIA quantity
534 015	15	8	27	65	8	1	1	274,50€	PL-FC DIA quantity
534 115	15	10	37	75	10	1	1	323,00€	PL-FC DIA quantity
534 017	17	12	45	85	12	1	1	363,50€	PL-FC DIA quantity
534 120	20	8	27	65	8	1	1	294,50€	PL-FC DIA quantity
534 020	20	10	35	75	10	1	1	358,50€	PL-FC DIA quantity
534 220	25	12	45	85	12	1	1	420,26€	PL-FC DIA quantity
